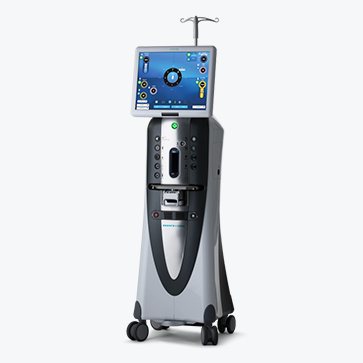

STELLARIS ELITE®

Reinventing responsiveness. Revolutionizing control.

By automatically reacting to crucial procedural factors as they change, Stellaris Elite empowers cataract surgeons with exacting control over every moment of cataract surgery.1 No matter how routine or challenging the case, Stellaris Elite lets you focus on the surgery—not the system.

Experience Stellaris Elite —where real-time responsiveness enables exceptional stability.

Official Website

With an unrivaled combination of leading-edge technologies, Stellaris Elite® is optimized to deliver precise control and extraordinary efficiency to a wide range of cataract and retina procedures.

Efficient Vitreous Removal

A revolutionary approach to vitreous removal. Using powerful hypersonic technology, Vitesse liquefies vitreous for a new level of surgical control and precision.

1. Effective cut rate.
2. Compared to traditional single-port cutters in BSS on systems in 7500 CPM mode.

Illumination and Photocoagulation
Exceptional illumination

Xenon and mercury-xenon light sources designed specifically for small-gauge vitrectomy that support fiber optic add-ons as small as 29 gauge.

- Chandeliers
- Endoilluminators
- Illuminated laser probes

Differentiated viewing

Proprietary color filters deliver distinct advantages over systems without filters and may be used as an augmentation or an alternative to intraoperative dyes.

- Yellow & Green : Filters out potentially damaging blue light
- Green : Highlights structural details
- Amber : Minimizes glare

Expanded access

A comprehensive portfolio of high-performance laser probes enables exceptional access and surgical efficiency. Patented illuminated directional laser probes feature a fixed fiber with a moving shaft, for exclusive 90-degree curve actuation.

- Delivers midfield light patterns
- Provides access to the far periphery
- Enables unassisted scleral depression - Visit the Illuminated Directional Laser Probe Page

Dual-Function Versatility

Stellaris Elite® integrates cataract and retina capabilities into a single platform, maximizing immediate and long-term ROI. With built-in abilities to seamlessly handle future updates and enhancements, Stellaris Elite® is optimized to provide value for multi-use environments now and as future practice needs arise.

Environnmental Specifications
Electrical input Universal input (100-240 VAC, 50/60 Hz, 1000 VA)
table-responsive Operating: 50°-104° F , Storage/transportation: 4°-140° F
Humidity Operating: 30%-70% relative , Storage/transportation: 10%-98% non-condensing
Altitude Up to 3,000 feet
Dimensions and Weight
Frequency 28.5 kHz nominal (six crystals)
Pulse mode range 1 to 250 pulses per second
Stroke length Up to 130 microns
Motion Longitudinal
Infusion and Vacuum
Irrigation Gravity and/or pressurized air
Air pressure Max 100 mmHg
Pump type Vacuum (Rotary vane)
Vacuum 0-600 mmHg
Anterior Vitrectomy
Handpiece 20, 23 and 25 gauge
Cutting rate 30-2500 cuts per minute
Foot pedal connection Wireless or corded
Mode Single or dual linear
Stellaris Elite Catalog

Size: 5.6 mb

Download
