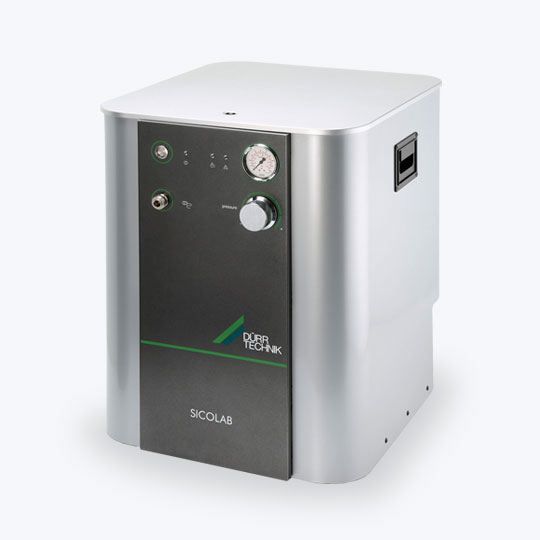

Sicolab
Silent – Compact – Mobile
The SICOLAB oil-free compressor system was conceived by Dürr Technik, specifically to be stored and used at the technician’s workbench. This is now possible, due to its extremely quiet, vibration free operation, and the compact size.
SICOLAB – all advantages at first glance
- Ultra quiet
- Low-vibration
- Compact to fit under the lab desk
- Oil-free
- Modern design
- Plug-and-Play thanks to the quick-connect outlet
- Adjustable outlet pressure simply set the desired pressure up to 8 bar (116 psi)
- Fine filter (optional) filtration grade 0,01 µm
- Activated carbon filter (optional) removes odor and other impurities from the compressed air
- Mobility - swivel wheels
- Endurance - designed to run even at 100 % duty-cycle
- Automatic condensate evaporator - elimination of manual drainage
- Air tank with high quality and anti-corrosion coating
- Recessed handles
- Secondary rear panel outlet connection
- Very long service life
- Membrane dryer 100 % duty-cycle (optional)
- Maintenance-free - easy-to-replace filter
The SICOLAB has an appealing, modern look, which perfectly complements other equipment in the laboratory. Its space-saving design allows it to fit neatly under the laboratory desk, while the sound-dampening cabinet substantially reduces noise. The system features an intuitive user interface and a simple plug-and-play operation. True to Dürr Technik traditions, reliability and longevity all come standard.

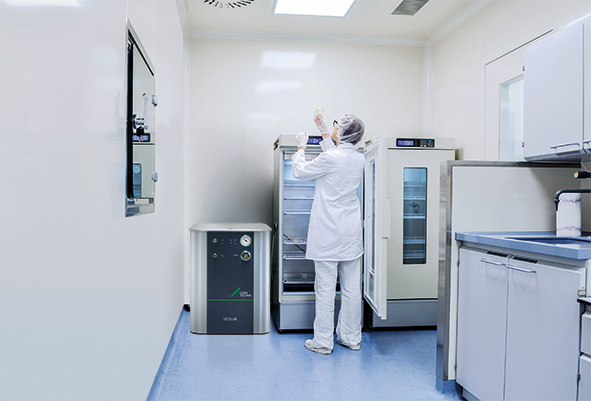

Fields of application for compressed air in the laboratory
High quality inner-coating for the interior tank
Our air tanks feature a proprietary internal, high quality coating. When the application requires dry air,an optional membrane dryer can be integrated with the system. With this option, the system generates consistently dry, compressed air even at 100 % duty-cycle - perfection made by Dürr Technik.
Membrane dryer
- Economical purge air consumption for improved energy efficiency
- Patented pressure limitation valve for optimizing the starting process
- Flexible: dew point is adjustable to meet the application requirements
Compressed air specification
- Maximum operating pressure 10 bar (145 psi)
- Dew point recuced by up to 60 K (108 °Ra)
- Air quality according to ISO 8573-1 up to class 1:3:1
Ambiant conditions
- Relative humidity up to 95%
- Operating temperature range from 5°C to 40°C (41 °F to 104 °F)
Options
- Membrane dryer
- Fine filter 0.01µm
- Activated carbon filter
- Spiral coiled hose with compressed air gunr
- Spezial voltages on request
Your benefits
- Low noise
- Compact design
- Plug-and-Play
- 100 % duty-cycle
- Oil-free
- Low-vibration
- Very long service life
- Large variety of versions
| Type | Free air flow at 5 bar (l/min) | Noise level PN dB (A) | Motor input P1 (kW) | Current consumption (A) | Voltage (V) | Frequency (Hz) | Protection Class (IP) | Weight (kg) | Dimensions L x W x H (mm) |
| SICOLAB 062 | 37 | 48 | 0,47 | 2,3 | 230 | 37 | 48 | 0,47 | 510x580x653 |
| SICOLAB 100 | 70 | 52 | 0,96 | 5,3 | 230 | 70 | 52 | 0,96 | 510x580x653 |
| SICOLAB 200 | 145 | 54 | 1,41 | 6,5 | 230 | 145 | 54 | 1,41 | 510x580x653 |
| SICOLAB 062M | 37 | 48 | 0,47 | 2,3 | 230 | 37 | 48 | 0,47 | 510x580x653 |
| SICOLAB 100M | 42 | 49 | 0,56 | 5,6 | 115 | 42 | 49 | 0,56 | 510x580x653 |
| SICOLAB 200M | 59 | 52 | 0,96 | 5,3 | 230 | 59 | 52 | 0,96 | 510x580x653 |
| SICOLAB 062MFA | 37 | 48 | 0,47 | 2,3 | 230 | 37 | 48 | 0,47 | 510x580x653 |
| SICOLAB 100MFA | 59 | 52 | 0,96 | 5,3 | 230 | 59 | 52 | 0,96 | 510x580x653 |
| SICOLAB 200MFA | 122 | 54 | 1,41 | 6,5 | 230 | 122 | 54 | 1,41 | 510x580x653 |
Sicolab Brochure
Size: 1,080 kb
